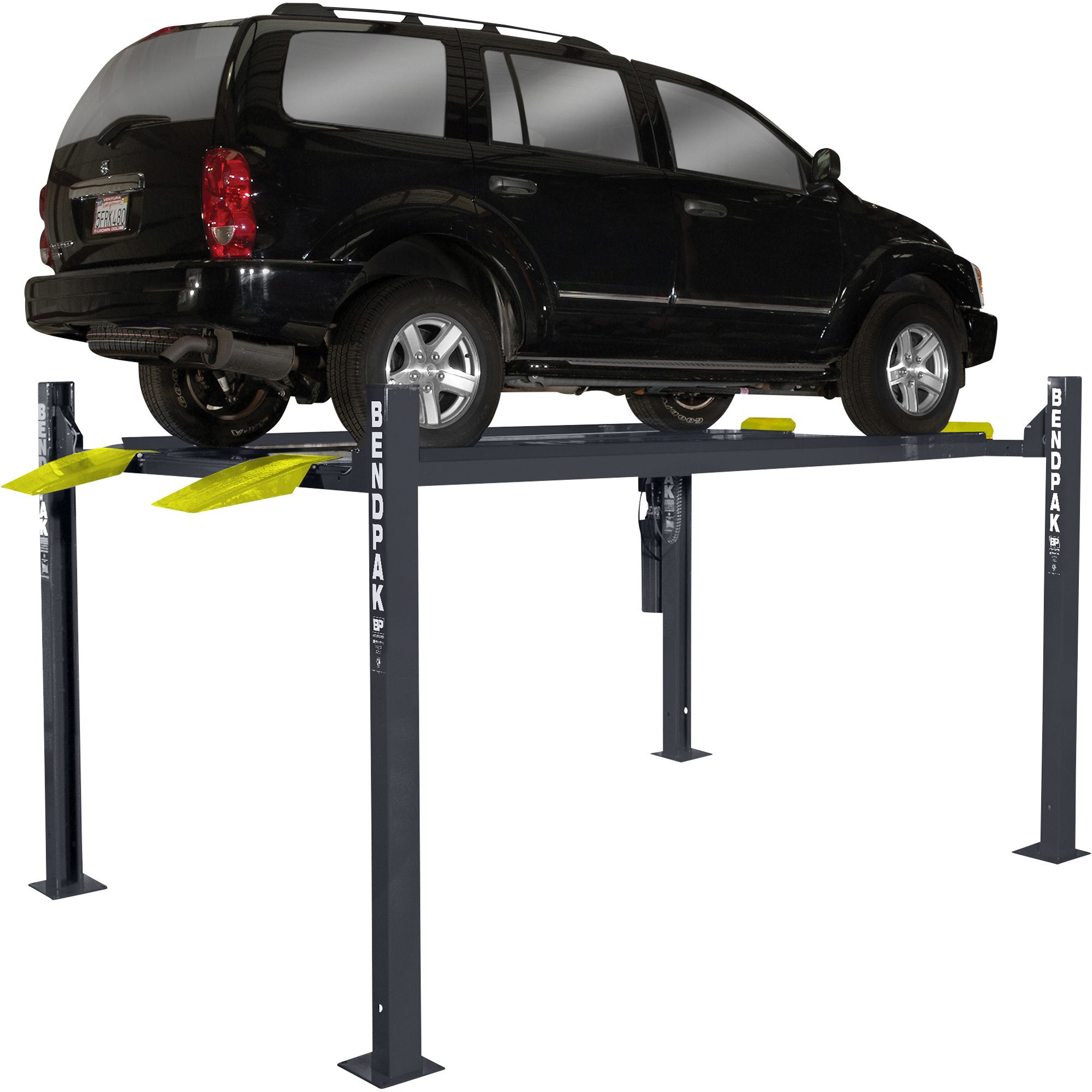

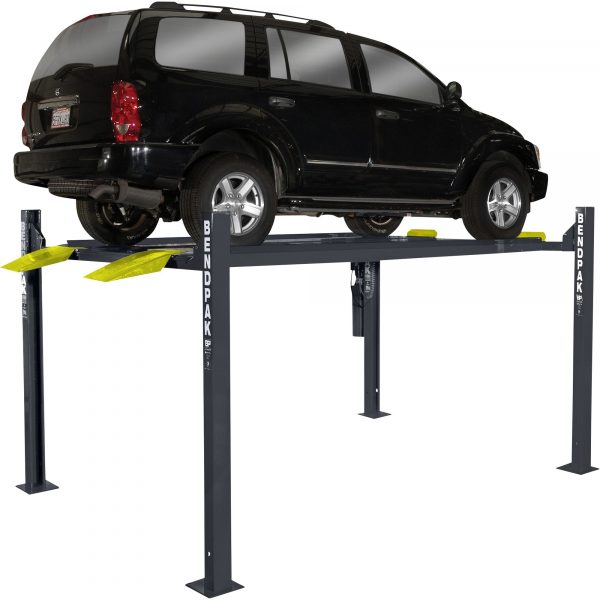

BendPak Compact 4-Post Car Lift — 7000-Lb. Capacity, Model# HD-7P

The BendPak HD-7P Compact 4-Post Car Lift is the perfect service lift for shops or garages with limited floor space. Features a formidable 7,000-lb. lifting capacity with a space-saving 200in.L x 100in.W overall size that fits in a typical size parking space. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by flatbed truck Monday–Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What’s Included

(1) 4-post car lift
(1) 220V power unit
(1) Set of parts

Product Manual

Features + Benefits

Provides 82in. max. rise for high lifting
Short runways measure just 164in.L x 19in.W x 4 1/2in.H
High-speed design lifts to full rise in just 35 seconds
220V, 2HP single phase motor provides the lifting power you need
Multi-position safety locks and adjustable lock ladders provide safety
Electric/hydraulic power system with a single hydraulic cylinder mounted underneath the runway provides easy, dependable lifting

Internal anti-sway slider blocks in each column offer stability
Oversized self-lubricating cable rollers and rugged 1 1/4in. roller axles deliver smooth operation
Heavy-duty 3/8in. aircraft cable offers strength and durability
Ramps feature non-skid surfaces for a sure grip
Easy pushbutton pneumatic safety release
Item too large for lift gate; Requires forklift on site for unloading

Key Specs

Item#	53857
Brand	BendPak
Manufacturer’s Warranty	12 months parts / 12 months labor
Ship Weight	1742.0 lbs
Lift Capacity (lbs.)	7,000
Max. Rise (in.)	82
Runway Dimensions L x W x H (in.)	164 x 19 x 4 1/2
Runway Dimensions L x W (in.)	164 x 19
Overall Height	100

Overall Width (in.)	100
Overall Length (in.)	200
Horsepower	2
Motor Phase	1
Volts	220
Lock Spacing (in.)	4
Time of Full Rise (seconds)	35
