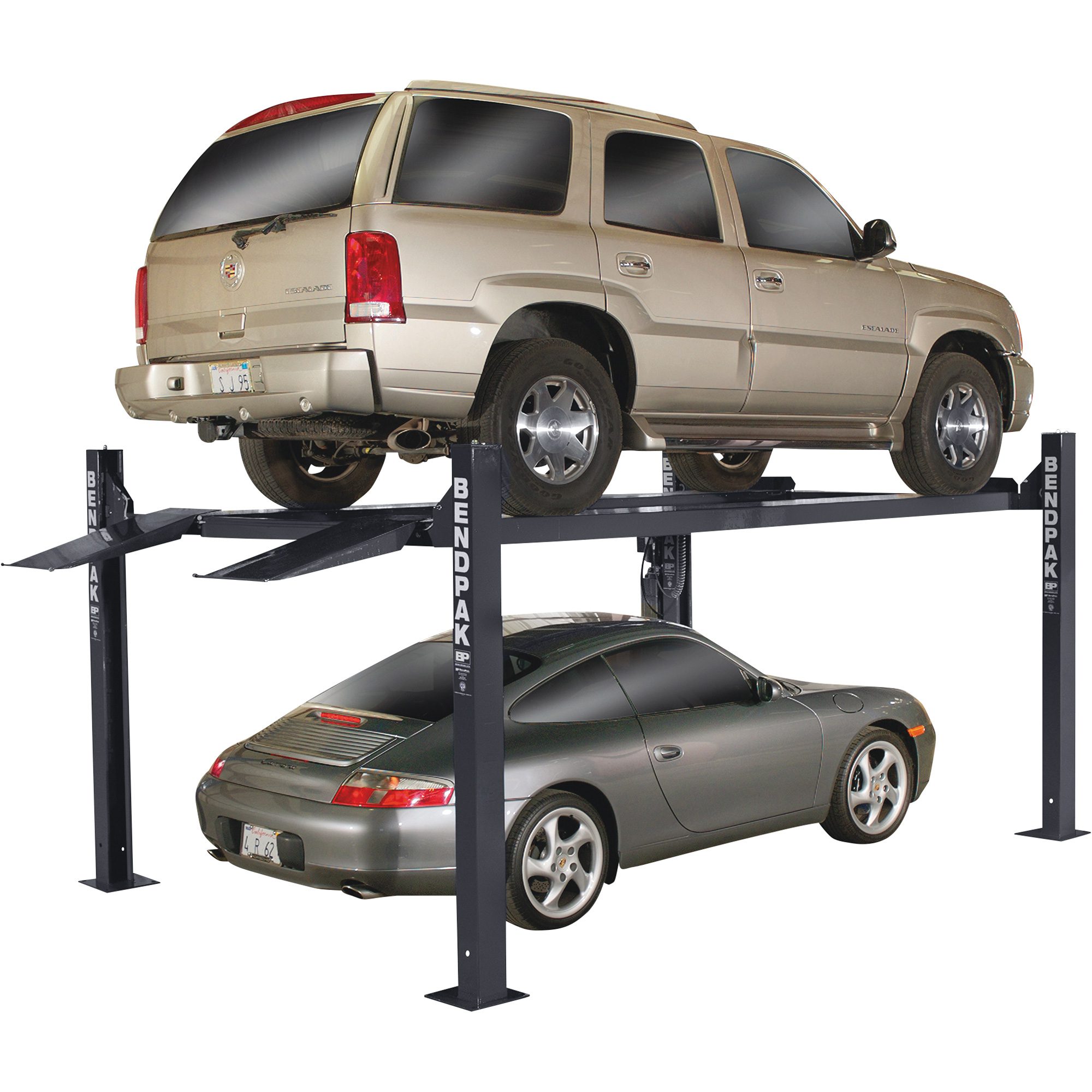

BendPak 4-Post Lift Wide/Standard Car Lift — 9000-LB. Capacity, Gray, Model# HD-9XL

This BendPak 4-Post Lift is a reliable electric/hydraulic power system lift that’s ideal for vehicle service or storage. The space-saving design maximizes the use of valuable floor area. Features a single-phase 220V, 2 HP motor that brings the lift to full rise in just 45 seconds. 15 locking positions in each column provide excellent operator safety. 224in.L x 110 1/4in.W x 88in.H overall. 19in.W runways are adjustable. 188in. runway length. Standard gray finish. Optional caster kit Item# 14468C available (sold separately). Works with rolling bridge jack (Item# 144767, sold separately). Forklift required for unloading lift. This item is delivered by flatbed truck Monday—Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What’s Included
  • (1) 4-post lift (Model# HD-9XL)

Features + Benefits

  • 9000-lb. maximum lifting capacity
  • Wide drive-through design with 110 1/4in. overall width and standard lift height, plus long runways
  • Freestanding design requires no special foundation and installation is not complicated
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Unit is lockable every 4in.H of spacing
  • Oversized self-lubricating cable rollers keep things operating smoothly
  • Heavy-duty 3/8in. dia. aircraft cable and rugged 1 1/4in. roller axles stand up to tough use
  • Runways feature a non-skid surface
  • Electric/hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column
  • Customizable power unit location for versatility
  • Includes internal anti-sway slider blocks, fully enclosed cables, multi-position safety locks and sheaves for excellent operator safety
  • Includes runways with rail kit for optional accessories
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • ETL approved
  • Item too large for lift gate; Requires forklift on site for unloading
Key Specs
Item# 44494
Brand BendPak
Manufacturer’s Warranty 12 months parts / 12 months labor
Ship Weight 1808.0 lbs
Lift Capacity (lbs.) 9,000
Max. Rise (in.) 70
Runway Dimensions L x W x H (in.) 188 x 19 x 4
Runway Dimensions L x W (in.) 188 x 19
Overall Height 88
Overall Width (in.) 110 1/4
Overall Length (in.) 224
Horsepower 2
Motor Phase Single
Volts 220
Lock Spacing (in.) 4
Time of Full Rise (seconds) 45
